並行システム
システム情報工学研究科コンピュータサイエンス専攻、電子・情報工学系
新城 靖
<yas@is.tsukuba.ac.jp>
このページは、次の URL にあります。
http://www.cs.tsukuba.ac.jp/~yas/sie/csys-2007/2007-12-21
あるいは、次のページから手繰っていくこともできます。
http://www.cs.tsukuba.ac.jp/~yas/sie/
http://www.cs.tsukuba.ac.jp/~yas/
http://gee.cs.oswego.edu/dl/cpj/
master()
{
初期化;
for( i=0 ; i<nthreads; i++ )
{
pthread_create(,,slave,);
}
マスターの処理;/*必要なら*/
for( i=0 ; i<nthreads; i++ )
{
pthread_join(,,slave,);
}
終了処理;/*必要なら*/
}
slave(void *params)
{
paramsからiを取り出す;
仕事をする;
結果を大域変数かparamsに返す;
return; /* pthread_exit() */
}

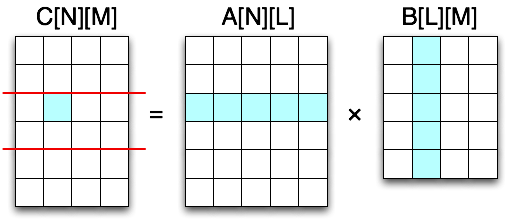

図? 行列の掛け算
[MatrixMultiplyMaster.java]
1: /*
2: * MatrixMultiplyMaster.java -- The master of MatrixMultiplySlave threads.
3: */
4:
5: class MatrixMultiplyMaster {
6: public static double matrix_multiply_trace( double a[][], double b[][],
7: double c[][], int nthreads )
8: throws java.lang.InterruptedException
9: {
10: int i;
11: MatrixMultiplySlave slaves[] = new MatrixMultiplySlave[nthreads];
12: for( i=0; i<nthreads; i++ )
13: {
14: slaves[i] = new MatrixMultiplySlave( a,b,c,i,nthreads );
15: slaves[i].start();
16: }
17: double trace = 0.0;
18: for( i=0; i<nthreads; i++ )
19: {
20: slaves[i].join();
21: trace += slaves[i].get_trace();
22: }
23: return( trace );
24: }
25: }
[MatrixMultiplySlave.java]
1: /*
2: * MatrixMultiplySlave.java -- Slave threads for Matrix multiplication.
3: */
4:
5: class MatrixMultiplySlave extends java.lang.Thread {
6: double[][] a, b, c;
7: int i,n ;
8: double trace_ans = 0.0 ;
9: public MatrixMultiplySlave( double a[][], double b[][], double c[][],
10: int i, int n )
11: {
12: this.a = a ; this.b = b ; this.c = c ;
13: this.i = i ; this.n = n ;
14: double trace = 0.0;
15: }
16: public void run()
17: {
18: int c_nrows = Matrix.nrows(c), c_ncols = Matrix.ncols(c),
19: a_ncols = Matrix.ncols(a);
20: int quot = c_nrows /n; int rem = c_nrows % n;
21: int do_rows = quot + (i < rem ? 1 : 0);
22: int first_row = quot * i + (i < rem ? i : rem);
23: double trace = 0.0;
24:
25: int row, col, j;
26: for( row = first_row; row < first_row + do_rows; row++ )
27: {
28: for( col=0; col < c_ncols; col++ )
29: {
30: double sum = 0.0;
31: for( j = 0; j < a_ncols; j++ )
32: {
33: sum += a[row][j] * b[j][col];
34: }
35: c[row][col] = sum;
36: if( row == col )
37: {
38: trace += sum;
39: }
40: }
41: }
42: trace_ans = trace;
43: }
44: public double get_trace()
45: {
46: return( trace_ans );
47: }
48: }
[MatrixMultiplyDemo.java]
1: /*
2: * MatrixMultiplyDemo.java -- run and measure execution time of MatrixMultiply.
3: */
4:
5: class MatrixMultiplyDemo {
6: public static void main(String argv[])
7: throws java.lang.InterruptedException
8: {
9: if( argv.length != 3 )
10: {
11: System.err.println("Usage:% java MatrixMultiplyDemo matrix-size nthreads niters");
12: System.err.println("Hints: matrix-size: 200..400, nthreads: 1..nCPU, niters: 1..100");
13: System.exit( 1 );
14: }
15: int matrix_size = Integer.parseInt( argv[0] );
16: int nthreads = Integer.parseInt( argv[1] );
17: int niters = Integer.parseInt( argv[2] );
18: run_matrix_multiply_trace( matrix_size, nthreads, niters );
19: System.exit( 0 );
20: }
21: static void run_matrix_multiply_trace( int matrix_size, int nthreads,
22: int niters )
23: throws java.lang.InterruptedException
24: {
25: // pthread_setconcurrency( nthreads );
26: double a[][] = Matrix.alloc( matrix_size, matrix_size );
27: double b[][] = Matrix.alloc( matrix_size, matrix_size );
28: double c[][] = Matrix.alloc( matrix_size, matrix_size );
29: java.util.Random r = new java.util.Random();
30: Matrix.fill_rand( a,r );
31: Matrix.fill_rand( b,r );
32: Matrix.fill_rand( c,r );
33: long start = System.currentTimeMillis();
34: for( int i=0; i<niters; i++ )
35: {
36: MatrixMultiplyMaster.matrix_multiply_trace( a,b,c,nthreads );
37: }
38: long end = System.currentTimeMillis();
39: double diff = (double)(end - start)/1000.0 ;
40: int concurrency = 0; // pthread_getconcurrency();
41: System.out.printf("matrix_size==%d, nthreads==%d, niters==%d, concurrency==%d\n",
42: matrix_size, nthreads, niters, concurrency );
43: System.out.printf("%6.3f [sec] / %d [iteration] == %6.3f [sec/iteration]\n",
44: diff, niters, diff/niters );
45: System.out.printf("%d [iteration] / %6.3f [sec] == %6.3f [iteration/sec]\n",
46: niters, diff, niters/diff );
47: }
48: }
[Matrix.java]
/*
* Matrix.java -- Simple matrix with wo-dimensional array.
*/
class Matrix {
public static double[][] alloc( int rows, int cols )
{
double m[][];
m = new double[rows][cols];
return( m );
}
public static void fill_rand( double m[][], java.util.Random r )
{
int m_nrows = nrows( m );
int m_ncols = ncols( m );
for( int i=0; i<m_nrows; i++ )
for( int j=0; j<m_ncols; j++ )
m[i][j] = r.nextDouble();
}
public static int nrows( double m[][] )
{
return( m.length );
}
public static int ncols( double m[][] )
{
return( m[0].length );
}
}
% wget http://www.cs.tsukuba.ac.jp/~yas/sie/csys-2007/2007-12-21/ex/MatrixMultiplyMaster.java% wget http://www.cs.tsukuba.ac.jp/~yas/sie/csys-2007/2007-12-21/ex/MatrixMultiplySlave.java
![[]](../icons/screen-cursor.gif)
% wget http://www.cs.tsukuba.ac.jp/~yas/sie/csys-2007/2007-12-21/ex/ms_matrix-main.c
http://www.atmarkit.co.jp/fjava/rensai3/devedge03/devedge03_1.html
http://www.shudo.net/article/hotspot_threads/threads.html
master()
{
初期化;
for( i=0 ; i<nthreads; i++ )
{
pthread_create(,,slave,);
}
while( !termcond )
{
マスターの処理Ａ;/*必要なら*/
barrier_wait();
マスターの処理Ｂ;/*必要なら*/
barrier_wait();
}
for( i=0 ; i<nthreads; i++ )
{
pthread_join(,,slave,);
}
終了処理;/*必要なら*/
}
slave(void *params)
{
paramsからiを取り出す;
while( !termcond )
{
/* マスターの処理Ａの完了を待つ */
barrier_wait();
スレーブ処理Ｂ;
結果を大域変数かparamsに返す;
barrier_wait();
}
return; /* pthread_exit() */
}
ループの間、マスタの仕事がないこともある。その場合は、マスタはバリアに
は参加しない(relax.c参照)。
図? 弛緩法
1: /*
2: * RelaxMaster.java -- The Master thread for the relax method.
3: */
4:
5: import java.util.concurrent.CyclicBarrier;
6:
7: class RelaxMaster {
8: RelaxSlave slaves[];
9: int nthreads;
10: public RelaxMaster( double boundary[][], double t[][],
11: final int nthreads)
12: {
13: this.nthreads = nthreads;
14: CyclicBarrier barrier =
15: new CyclicBarrier( nthreads,
16: new Runnable() {
17: public synchronized void run() {
18: all_done = n_done == nthreads;
19: n_done = 0;
20: }
21: }
22: );
23: double t_temp[][] = Matrix.alloc( Matrix.nrows(t), Matrix.ncols(t) );
24: slaves = new RelaxSlave[nthreads];
25: int i;
26: for( i=0; i<nthreads; i++ )
27: {
28: slaves[i] = new RelaxSlave( i,nthreads, boundary, t, t_temp,
29: barrier, this );
30: }
31: }
32: public void relax()
33: throws java.lang.InterruptedException
34: {
35: int i;
36: for( i=0; i<nthreads; i++ )
37: {
38: slaves[i].start();
39: }
40: for( i=0; i<nthreads; i++ )
41: {
42: slaves[i].join();
43: }
44: }
45: int n_done = 0;
46: boolean all_done = false;
47: public synchronized void i_am_done()
48: {
49: n_done ++;
50: }
51: public synchronized boolean all_done()
52: {
53: return( all_done );
54: }
55: }
[RelaxSlave.java]
1: /*
2: * RelaxSlave.java -- Slave threads for relax method
3: */
4:
5: import java.util.concurrent.CyclicBarrier;
6:
7: class RelaxSlave extends java.lang.Thread {
8: double[][] boundary, t, t_temp;
9: int i,n ;
10: CyclicBarrier barrier;
11: RelaxMaster master;
12: public RelaxSlave( int i, int n, double boundary[][], double t[][],
13: double t_temp[][], CyclicBarrier barrier,
14: RelaxMaster master)
15: {
16: this.i = i ; this.n = n ;
17: this.boundary = boundary ; this.t = t ; this.t_temp = t_temp ;
18: this.barrier = barrier;
19: this.master = master;
20: }
21: public void run()
22: {
23: double t_old[][] = this.t;
24: double t_new[][] = this.t_temp;
25: int quot = Matrix.nrows(boundary) / n;
26: int rem = Matrix.nrows(boundary) % n;
27: int do_rows = quot + (i < rem ? 1 : 0);
28: int first_row = quot * i + (i < rem ? i : rem);
29: double temp[][];
30:
31: int row, col;
32: boolean converged;
33: // int n_done;
34:
35: do {
36: converged = true;
37: for( row = first_row; row < first_row + do_rows; row++ )
38: {
39: for( col = 0; col < Matrix.ncols(boundary); col++ )
40: {
41: if( boundary[row][col] == 0 )
42: {
43: double v =
44: (t_old[row-1][col] +
45: t_old[row+1][col] +
46: t_old[row ][col-1] +
47: t_old[row ][col+1]) / 4.0;
48: if( java.lang.Math.abs(v-t_old[row][col]) > 0.000001)
49: converged = false;
50: t_new[row][col] = v;
51: }
52: else
53: {
54: t_new[row][col] = t_old[row][col];
55: }
56: }
57: }
58: try
59: {
60: if( converged && t_new == this.t )
61: master.i_am_done();
62: barrier.await();
63: }
64: catch( java.lang.InterruptedException e)
65: {
66: return;
67: }
68: catch( java.util.concurrent.BrokenBarrierException e)
69: {
70: return;
71: }
72: temp = t_new; t_new = t_old; t_old = temp;
73: } while( !master.all_done() );
74: }
75: }
[RelaxDemo.java]
1: /*
2: * RelaxDemo.java -- run and measure execution time of Relax.
3: */
4:
5: class RelaxDemo {
6: public static void main(String argv[])
7: throws java.lang.InterruptedException
8: {
9: if( argv.length != 3 )
10: {
11: System.err.println("Usage:% java RelaxDemo matrix-size nthreads niters");
12: System.err.println("Hints: matrix-size: 40..60, nthreads: 1..nCPU, niters: 1..100");
13: System.exit( 1 );
14: }
15: int matrix_size = Integer.parseInt( argv[0] );
16: int nthreads = Integer.parseInt( argv[1] );
17: int niters = Integer.parseInt( argv[2] );
18: run_relax( matrix_size, nthreads, niters );
19: System.exit( 0 );
20: }
21: static void run_relax( int matrix_size, int nthreads,
22: int niters )
23: throws java.lang.InterruptedException
24: {
25: // pthread_setconcurrency( nthreads );
26: double t[][] = Matrix.alloc( matrix_size, matrix_size );
27: double boundary[][] = Matrix.alloc( matrix_size, matrix_size );
28: matrix_t_fill( t );
29: matrix_boundary_fill( boundary );
30: long start = System.currentTimeMillis();
31: for( int i=0; i<niters; i++ )
32: {
33: RelaxMaster m = new RelaxMaster( boundary, t, nthreads );
34: m.relax();
35: }
36: long end = System.currentTimeMillis();
37: double diff = (double)(end - start)/1000.0 ;
38: int concurrency = 0; // pthread_getconcurrency();
39: System.out.printf("matrix_size==%d, nthreads==%d, niters==%d, concurrency==%d\n",
40: matrix_size, nthreads, niters, concurrency );
41: System.out.printf("%6.3f [sec] / %d [iteration] == %6.3f [sec/iteration]\n",
42: diff, niters, diff/niters );
43: System.out.printf("%d [iteration] / %6.3f [sec] == %6.3f [iteration/sec]\n",
44: niters, diff, niters/diff );
45: }
46: static void matrix_t_fill( double t[][] )
47: {
48: int n_rows = Matrix.nrows( t );
49: int n_cols = Matrix.nrows( t );
50: int i,j;
51: for( i=0 ; i<n_rows; i++ )
52: {
53: for( j=0; j<n_cols; j++ )
54: {
55: t[i][j] = 0.0 ;
56: }
57: }
58: j = n_cols/2 ;
59: for( i=0 ; i<n_rows; i++ )
60: {
61: t[i][j] = 1.0 ;
62: }
63: i = n_cols/2 ;
64: for( j=0; j<n_cols; j++ )
65: {
66: t[i][j] = 1.0 ;
67: }
68: }
69: static void matrix_boundary_fill( double m[][] )
70: {
71: int n_rows = Matrix.nrows( m );
72: int n_cols = Matrix.nrows( m );
73: int i,j ;
74: for( i=0 ; i<n_rows; i++ )
75: {
76: for( j=0; j<n_cols; j++ )
77: {
78: m[i][j] = 0 ;
79: }
80: }
81: for( i=0 ; i<n_rows; i++ )
82: {
83: m[i][0] = 1 ;
84: m[i][n_cols-1] = 1 ;
85: }
86: for( j=0; j<n_cols; j++ )
87: {
88: m[0][j] = 1 ;
89: m[n_rows-1][j] = 1 ;
90: }
91: }
92: }
% wget http://www.cs.tsukuba.ac.jp/~yas/sie/csys-2007/2007-12-21/ex/RelaxMaster.java
% wget http://www.cs.tsukuba.ac.jp/~yas/sie/csys-2007/2007-12-21/ex/ms_relax.c
worker_thraed()
{
while( (ptr=work_get(workpile))!=NULL )
{
ptrが示す仕事をする;
if( 新しい仕事ができた )
{
work_put(workpile,新しい仕事);
}
}
}

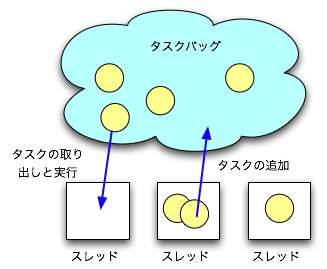

図? タスクバッグ
1: /*
2: * QuickSort.java -- Multithreaded quick sort with a task bag
3: */
4:
5: import java.util.concurrent.Executor;
6: import java.util.concurrent.ExecutorService;
7: import java.util.concurrent.Executors;
8:
9: class QuickSortTask implements Runnable {
10: double data[];
11: int base;
12: int n;
13: QuickSort manager;
14: public QuickSortTask( double data[], int base, int n,
15: QuickSort manager )
16: {
17: this.data = data ;
18: this.base = base ;
19: this.n = n ;
20: this.manager = manager ;
21: }
22: static final int SORT_DIRECT = 200;
23: public void run()
24: {
25: int i,j;
26: if( n <= SORT_DIRECT )
27: {
28: for( j=1; j<n; j++)
29: {
30: double key = data[base+j];
31: for( i=j-1; i >= 0 && key < data[base+i]; i--)
32: data[base+i+1] = data[base+i];
33: data[base+i+1] = key;
34: }
35: manager.task_done();
36: return;
37: }
38: i = 0;
39: j = n - 1;
40: while( true )
41: {
42: while( data[base+i] < data[base+j] ) j--;
43: if( i >= j ) break;
44: { double t = data[base+i]; data[base+i] = data[base+j];
45: data[base+j] = t; } /* swap */
46: i++;
47: while( data[base+i] < data[base+j] ) i++;
48: if (i >= j) { i = j; break; }
49: { double t = data[base+i]; data[base+i] = data[base+j];
50: data[base+j] = t; } /* swap */
51: j--;
52: }
53: manager.add_task( data,base, i );
54: manager.add_task( data,base+i+1,n-i-1 );
55: manager.task_done();
56: }
57: }
58:
59: class QuickSort {
60: int task_count;
61: ExecutorService exec;
62: public QuickSort(int n_threads)
63: {
64: task_count = 0;
65: exec = Executors.newFixedThreadPool(n_threads);
66: }
67: public synchronized void add_task( double data[], int base, int n )
68: {
69: task_count ++;
70: Runnable task = new QuickSortTask( data,base,n,this );
71: exec.execute( task );
72: }
73: public synchronized void task_done()
74: {
75: task_count -- ;
76: if( task_count <= 0 )
77: notify();
78: }
79: public synchronized void work_wait()
80: throws java.lang.InterruptedException
81: {
82: while( task_count > 0 )
83: {
84: wait();
85: }
86: exec.shutdown();
87: }
88: }
[QuickSortDemo.java]
1: /*
2: * QuicksortDemo.java -- run and measure execution time of Quicksort.
3: */
4:
5: class QuickSortDemo {
6: public static void main(String argv[])
7: throws java.lang.InterruptedException
8: {
9: if( argv.length != 2 )
10: {
11: System.err.println("Usage:% java QuicksortDemo matrix-size nthreads");
12: System.err.println("Hints: matrix-size: 1000000, nthreads: 1..nCPU");
13: System.exit( 1 );
14: }
15: int matrix_size = Integer.parseInt( argv[0] );
16: int nthreads = Integer.parseInt( argv[1] );
17: run_quicksort( matrix_size, nthreads );
18: System.exit( 0 );
19: }
20: static void run_quicksort( int matrix_size, int nthreads )
21: throws java.lang.InterruptedException
22: {
23: // pthread_setconcurrency( nthreads );
24: double data[] = new double[matrix_size];
25: data_fill( data,matrix_size );
26: long start = System.currentTimeMillis();
27: QuickSort qs = new QuickSort( nthreads );
28: qs.add_task( data,0,matrix_size );
29: qs.work_wait();
30: long end = System.currentTimeMillis();
31: double diff = (double)(end - start)/1000.0 ;
32: int concurrency = 0; // pthread_getconcurrency();
33: int niters = 1;
34: System.out.printf("matrix_size==%d, nthreads==%d, niters==%d, concurrency==%d\n",
35: matrix_size, nthreads, niters, concurrency );
36: System.out.printf("%6.3f [sec] / %d [iteration] == %6.3f [sec/iteration]\n",
37: diff, niters, diff/niters );
38: System.out.printf("%d [iteration] / %6.3f [sec] == %6.3f [iteration/sec]\n",
39: niters, diff, niters/diff );
40: }
41: static void data_fill( double data[], int size )
42: {
43: int i;
44: java.util.Random r = new java.util.Random();
45: for( i=0 ; i<size; i++ )
46: {
47: data[i] = r.nextDouble();
48: }
49: }
50: static void data_print( double data[], int size )
51: {
52: int i;
53: for( i=0 ; i<size; i++ )
54: {
55: System.out.printf("%4.2f ",data[i]);
56: }
57: System.out.printf("\n");
58: }
59: }
% wget http://www.cs.tsukuba.ac.jp/~yas/sie/csys-2007/2007-12-21/ex/QuickSort.java
% wget http://www.cs.tsukuba.ac.jp/~yas/sie/csys-2007/2007-12-21/ex/quicksort-main.c
コンパイル時: -pg オプションを付ける。
実行すると gmon.out というファイルが作られる。 これを、実行形式ファイルと共に gprof コマンドに渡す。
プログラミング言語としては、C言語、または、Java を用いなさい。
プログラミング言語としては、C言語、または、Java を用いなさい。
プログラミング言語としては、C言語、または、Java を用いなさい。
プログラミング言語としては、C言語、または、Java を用いなさい。
